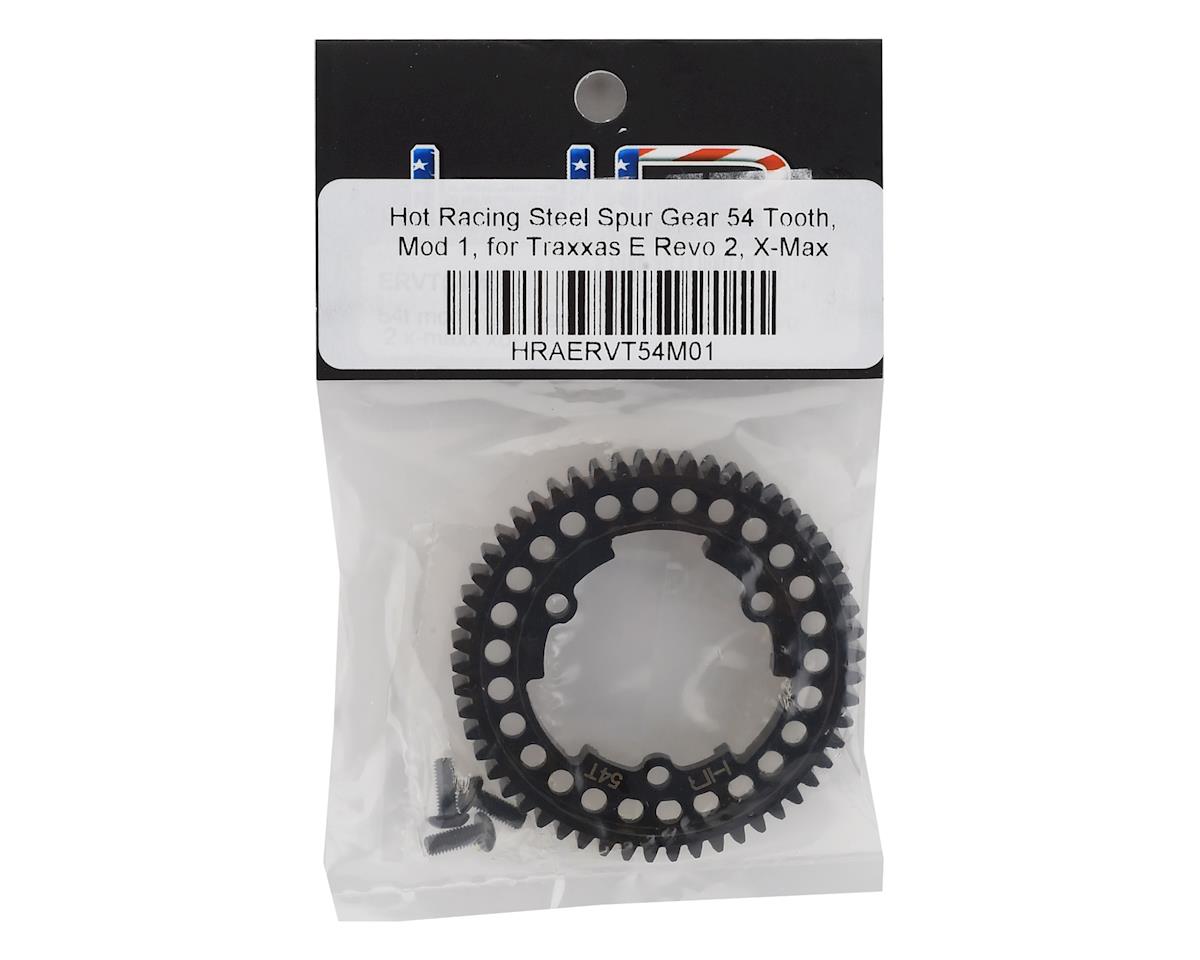

The Hot Racing hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S and XO-1 models. Choose from 50, 52 and 54 tooth options.

NOTE:
Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)

With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.

Features:
CNC machined hardened steel construction
Black oxide finished
Laser etched tooth count marking
Upgrade for factory plastic spur gear

Specifications:
Overall diameter: 52.8mm
Gear face width: 8mm

Includes:
One (1) mod 1 steel spur gear
