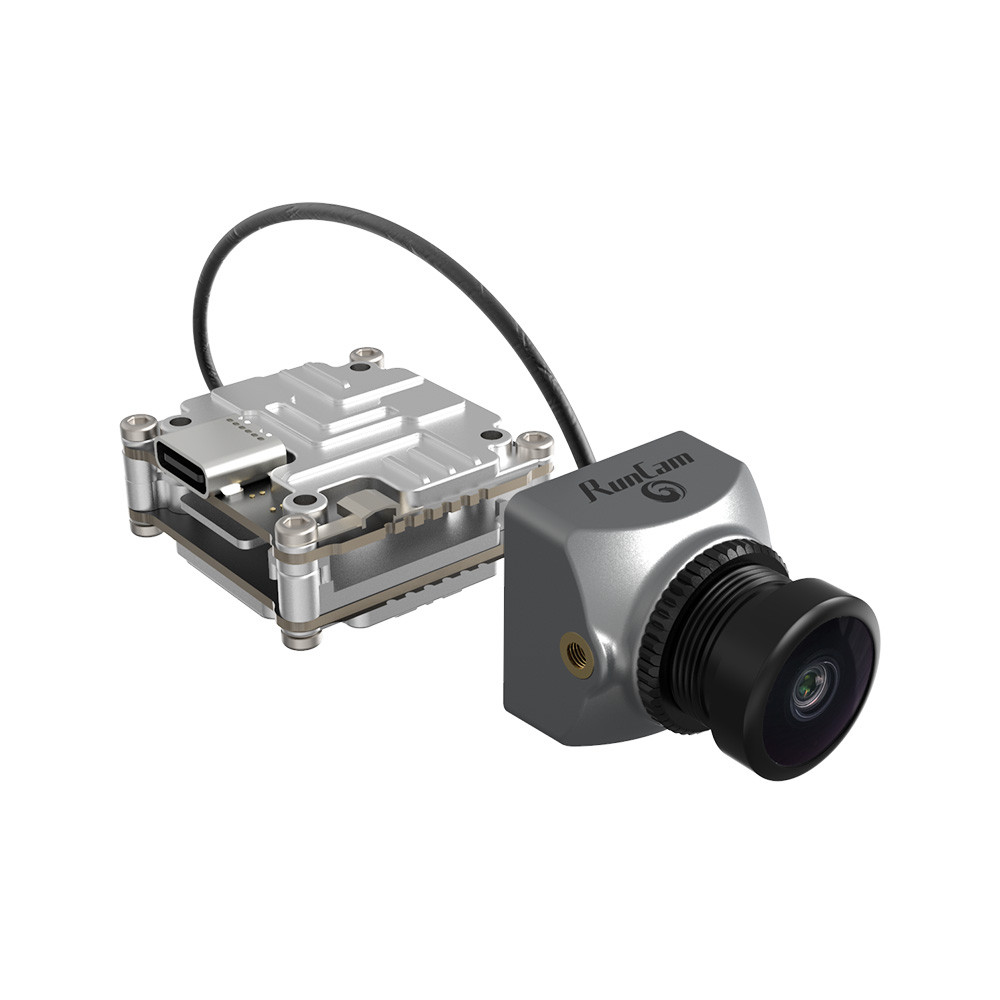

The new HD system from Runcam combines a digital HD transceiver, the Link Digital Air Unit, and the RunCam Phoenix HD Camera. The RunCam Link provides you a 1280x720 60fps video feed to see clearly and boasts great low-light performance thanks to its 1/2" high-sensitivity sensor.

About Runcam Link Digital FPV Air Unit
The Runcam Link Digital FPV Air Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 1280 x 720 60fps image transmission, with a transmission range of up to 4 km and a minimum end-to-end latency within 32 ms*. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly.

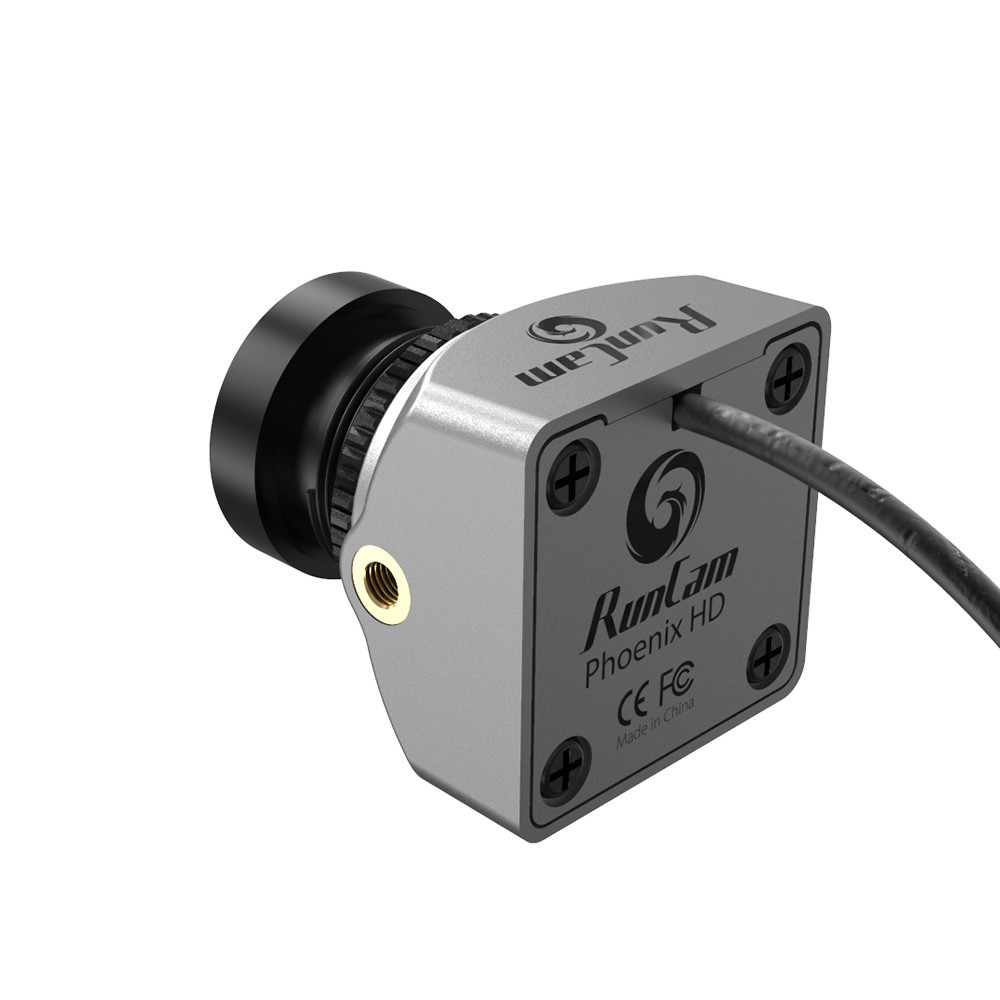

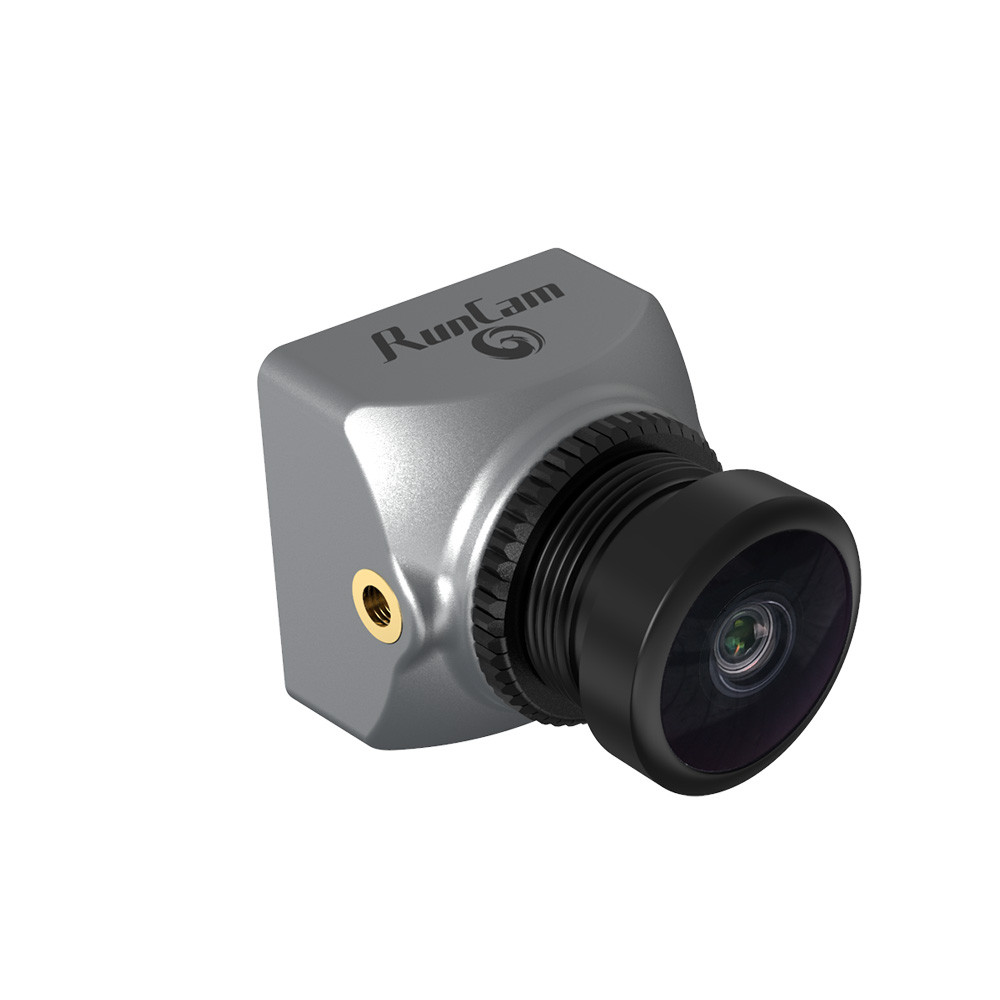

About RunCam Phoenix HD Camera
The RunCam Phoenix HD Camera provides a 1280x720 60fps resolution and uses a 1/2", up to 10650 mv/lux-sec ultra-high sensitivity sensor - making this camera excellent for night vision.

Suitable for freestyle flying, the RunCam Phoenix HD Camera comes with a 120cm coaxial cable so you can pair it up with the Link Air Unit!



Specifications

RunCam LINK Phoenix HD Kit
Weight: Air Unit (camera included): 27 g
Weight: Air Unit (alone): 19.5
Dimensions :

Air Unit: 29x29x13 mm

Camera:L19mm*W19mm*H23.5mm
Coaxial Cable: 120 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) :

FCC/SRRC: <30 dBm;

CE: <14 dBm
Min. Latency (end-to-end): 1280 x 720 60fps: 32 ms
Max. Transmission Distance: FCC/SRRC: 4 km; CE: 0.7 km;
I/O Interface: Type-C, IPEX, 3-in-1 port,
Supported Flight Control System: BetaFlight
Operating Temperature Range: 0� to 40� C (32� to 104� F)
Power: 7.4-26.4V@ 4-9W

RunCam Phoenix HD Camera
Image Sensor: 1/2"
Resolution: 1280*720@60fps
LENS: FOV D:157 H:133 V:72
Shutter: Rolling Shutter
Coaxial Cable: 120 mm
Dimensions: L19mm*W19mm*H23.5mm
Weight: 7.5g

Manual

Includes

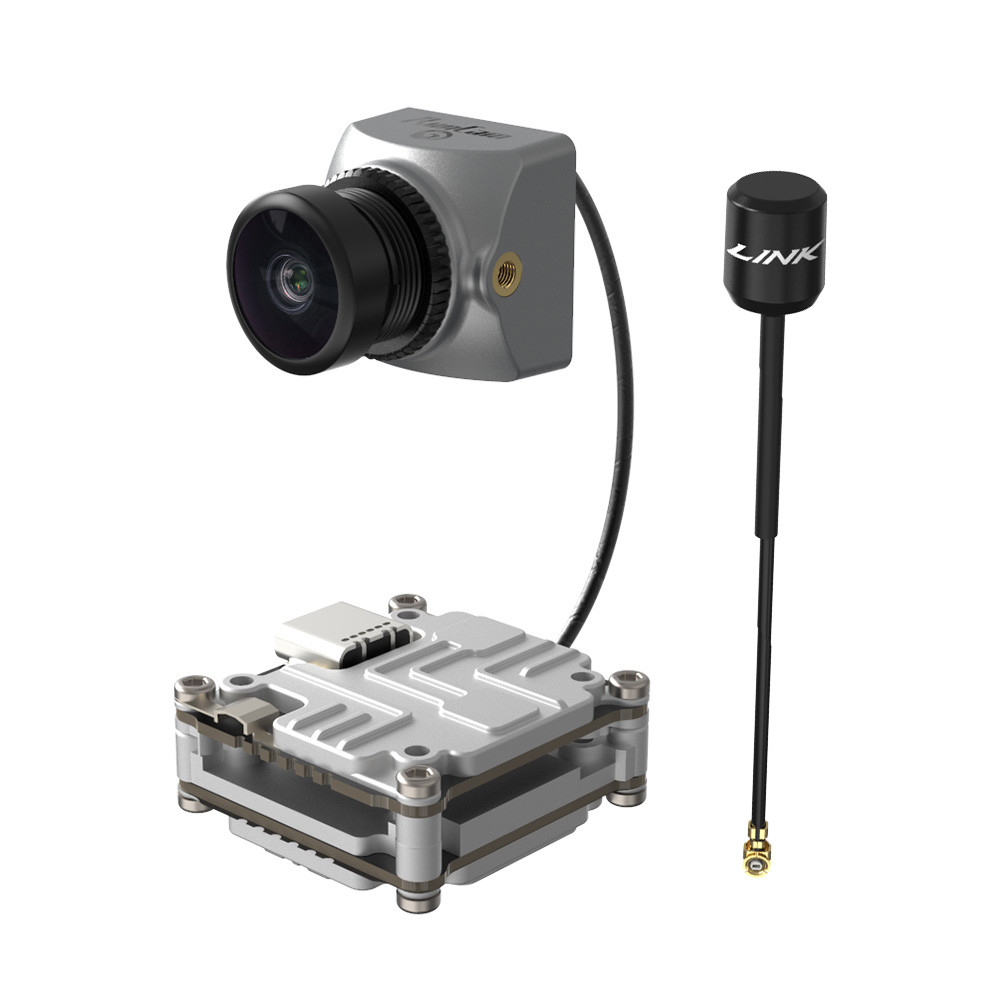

1 x Link Air Unit + Phoenix HD Camera
1 x APEX Antenna
1 x JST SH 1.0 6pin Cable
