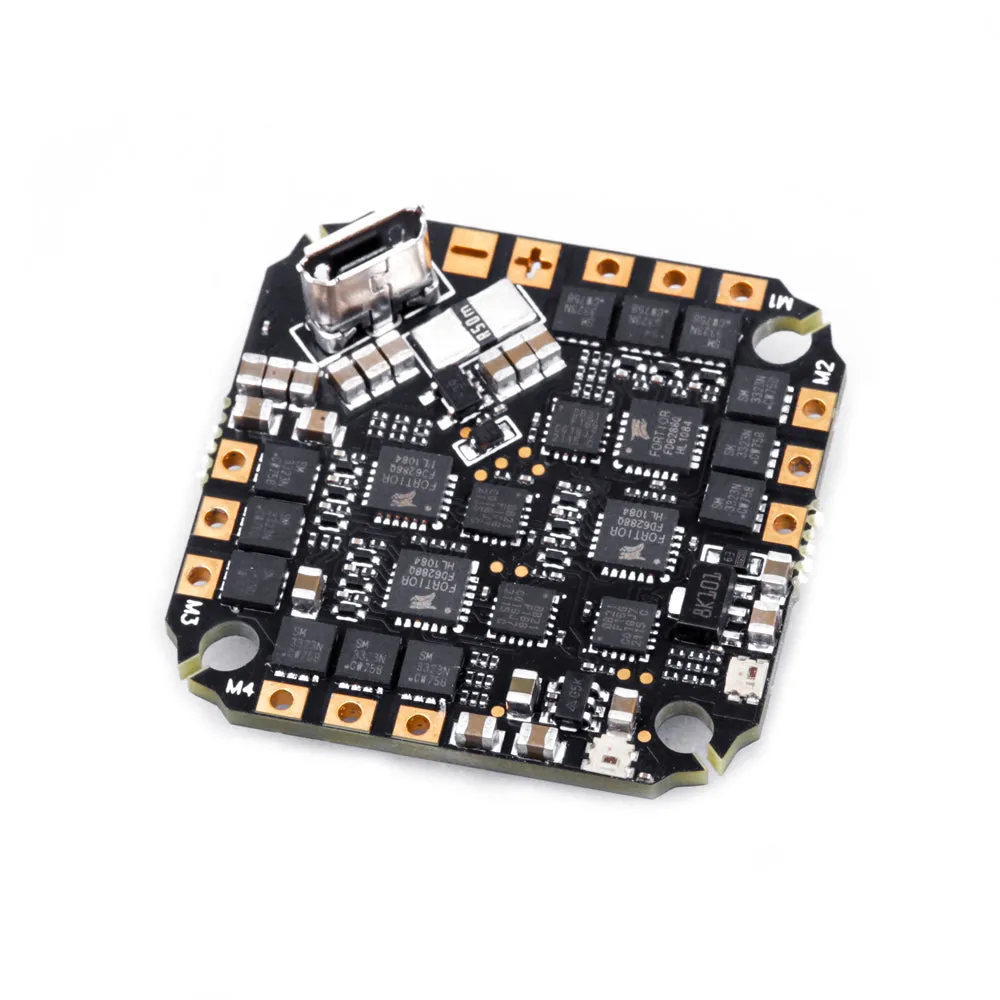

Flywoo GOKU GN 405S 20A AIO (ICM42688) 25.5 X 25.5

Write Review
Additional Information
  • Weight : 0.10
  • Model : FC405AICM
$79.99US
FLYWOO new top GOKU series AIO are finally here! GOKU GN405 20A FC is an economical and durable all-in-one AIO , which can meet most your FPV needs. Use powerful F405 chip , integrate 5V BEC, barometer, black box, WS2812LED, support 6 complete hardware serial ports, I2C and other functions are all open.

Features
F405 BGA MCU
Barometer
5V BEC
Black Box
20A 8Bit ESC
6 UARTS
current sensor
LED

Specifications
MCU: STM32F405 BGA
IMU: ICM42688
Barometer: SPL06
Onboard LED?WS2812*4
6 hardware UARTS (UART1,2,3,4,5,6)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 33.5x33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
Weight: 8.5g
Support BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2-6S Lipo
Continuous Current: 20A
Firmware: BLHELI_S

Q&A :
1? Betaflight Firmware target: FLYWOOF405S_AIO
2?GOKU GN405S 20A AIO Wiring Diagram : ( LINK)
