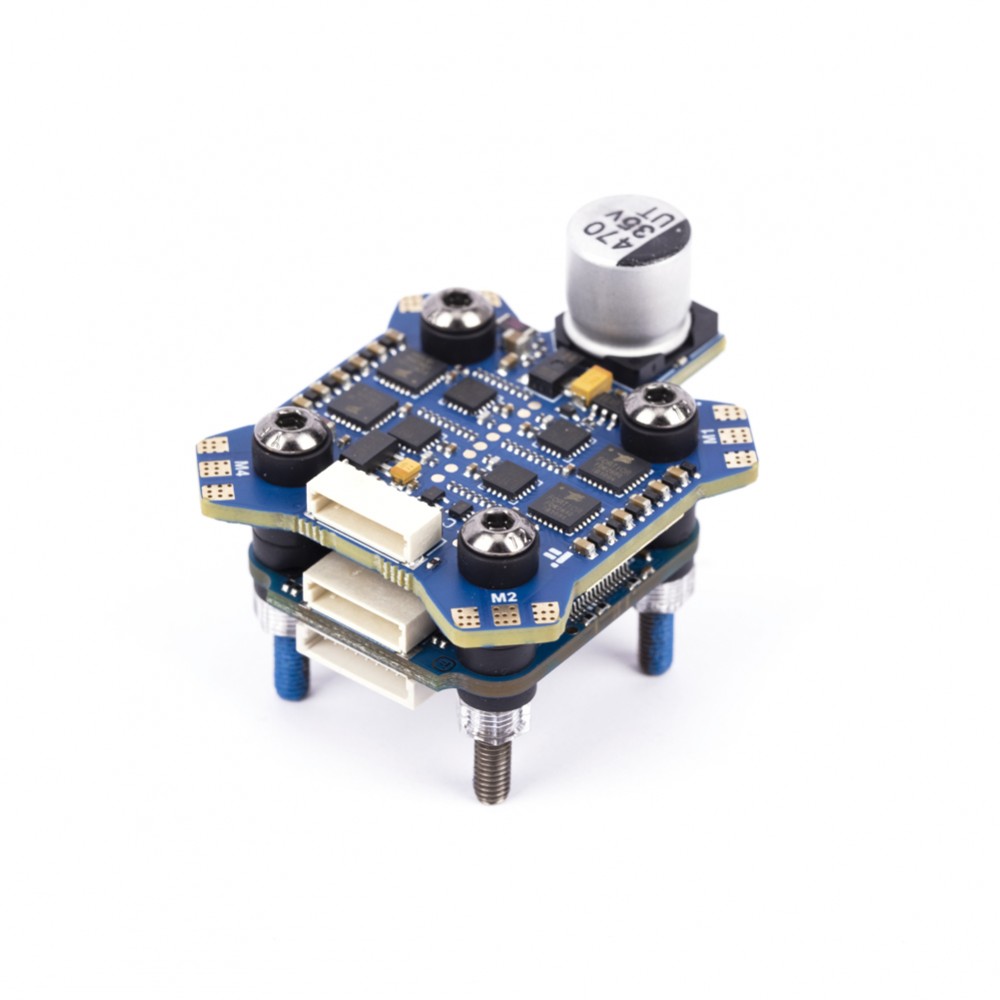

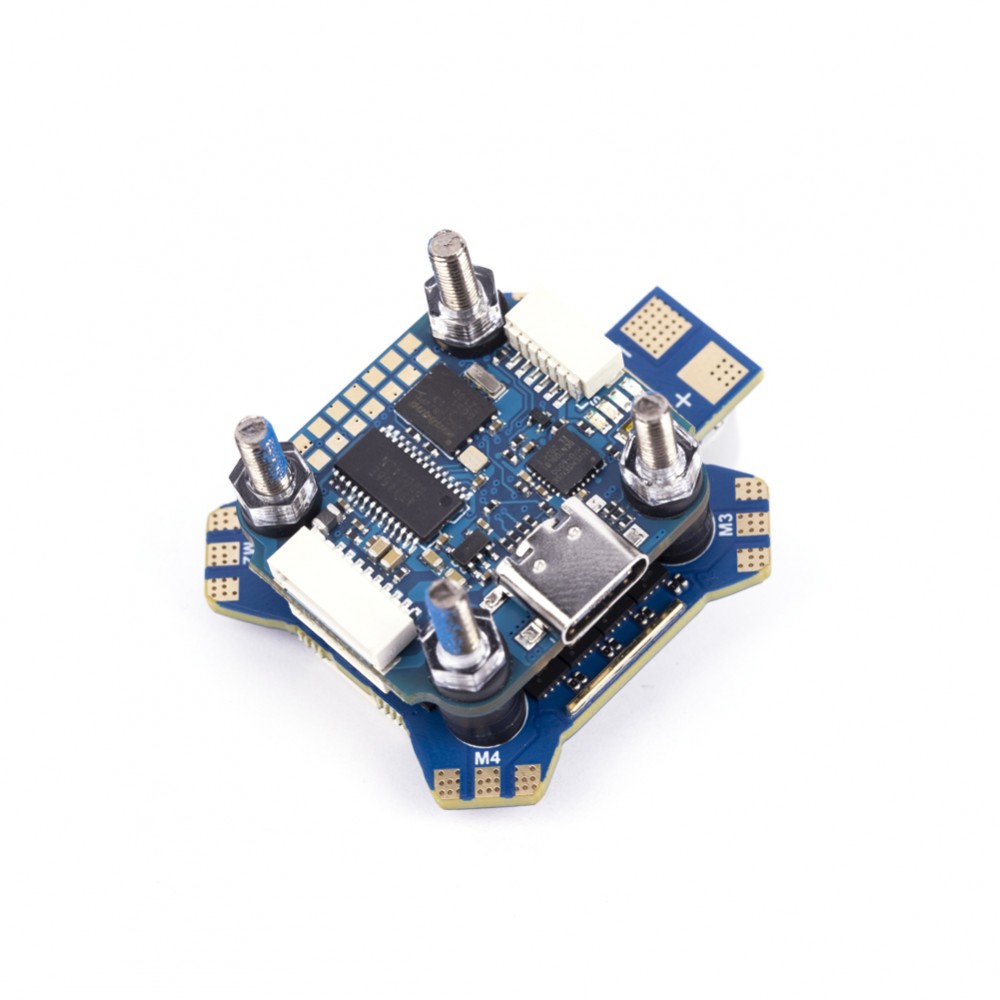

FC // BLITZ Mini F4 Flight Controller

Top Features:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging

SPECS:
- MCU?STM32F405
- GYRO?MPU6000
- BARO: NO
- BETAFLIGHT OSD: IFLIGHT OSD ?AT7456E)
- BLACKBOX: 16MB
- UARTS: 6
- I2C SERIAL: SDA / SLA PADS
- SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTED
- LED CONTROLLER: YES
- BEEPER PAD: YES
- FIRMWARE TARGET : IFRC-IFLIGHT_BLITZ_F405
- MOUNTING?20*20MM/?4
- DIMENSIONS?30.5*27MM
- WEIGHT?5.0G

WIRING SUGGESTION:
- UART 1 FOR VTX HD / ANALOG
- UART 2 FOR A RECEIVER
- UART 3/4 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT
- UART 6 FOR ESC TELEMETRY

TIPS
1. F405 MCU HAS NOT INNER INVERTER
2. SBUS?CRSF?ELRS?IBUS?DSM ETC... CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX2
3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1
4. F.PORT CAN BE USED, NEED TO BE CONNECTED TO UART_TX2 AND SETUP THE INNER INVERTER

ESC // BLITZ MINI E55S 4-IN-1 2-6S ESC

Specification:
- Mounting Holes: 20*20mm/?4mm
- Weight: 11.3g
- Supports 2-6S lipo input
- MCU?BB21
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: QH-50 16.7
- Dimension: 35*42mm

Package included:
- 1pc x BLITZ Mini F4 Flight Controller
- 1pc x BLITZ Mini E55S 4-IN-1 2-6S ESC
- 1SET X SILICON GROMMETS
- 1SET X WIRE HARNESS FOR F4 FLIGHT CONTROLLER
