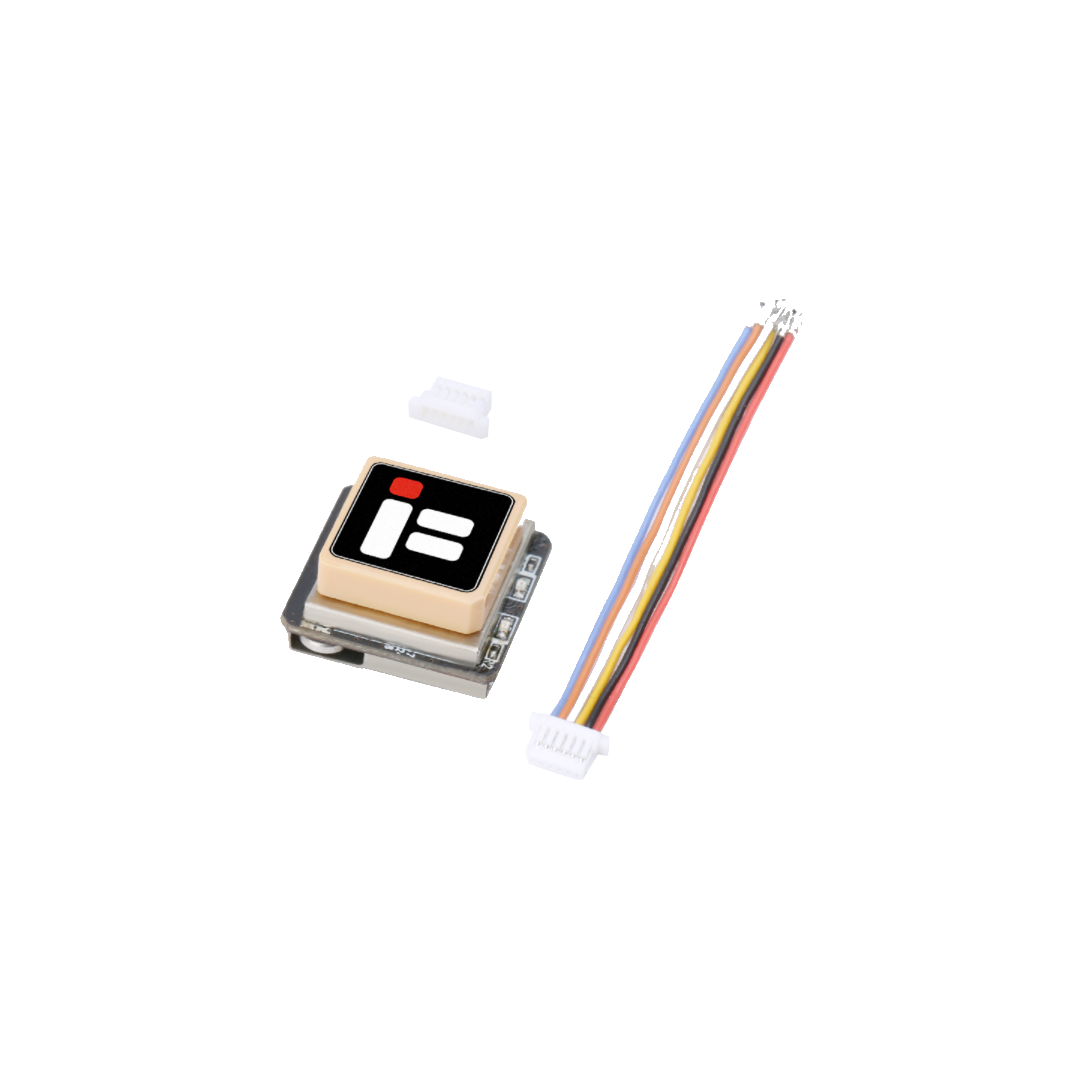

Features
10 Hz Refresh rate
Additional front-end LNA (Low Noise Amplifier)
High sensitivity 15x15mm GPS patch antenna
Built-in TCXO crystal and farad capacitor for faster hot start
Compass module QMC5883L integrated

Specifications
GPS module: GPSSAM-M8Q
Frequencies? 72 channel
Compass module: QMC5883L
Baud Rate?4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162dBm? Capture: -160dBm?Cold Start?-148dBm
Cold start?<29s
Hot start? <2s
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Maximum height: 50.000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ? 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 15 x 15 mm
Total dimensions?20 x 20 x 10.5 mm
Weight: 8g
Input Voltage? 3.3V-5V?current 25mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
